Exhalation Valve Assembly 1407-7005-000

1407-7005-000
New
Anesthesia Delivery
Aespire
GE HealthCare
GE HealthCare
N/A
Add to Wish List
Sign In & Add To Cart
Sign In & Add To Cart
Please select date
Second Opinion Approval Needed

Enter your approval number and submit to add item(s) to cart.

Approval Number

Please enter approval number

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.

Second Opinion Approval Needed

Select your approver's name and submit to add item(s) to your cart

Approver Name

Please Select Approver Name

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.


Product Overview

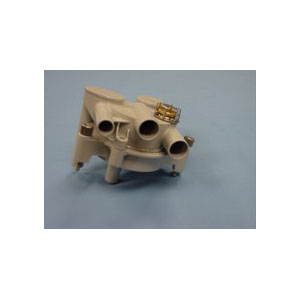

Exhalation valve assembly is used to allow minimum leakage of air during inhalation and provide low resistance during exhalation. The valve should be free from foreign material and cover must be attached properly. The exhalation valve assembly consists of exhalation valve cover, diaphragm assembly, O-ring, seat exhalation valve assembly, retainer disk and base. The exhalation valve contains an elastomeric diaphragm that is used along with the flow valve to control the pressures in the breathing circuit. The diaphragm with pressure disks on both sides is the only movable part in the complete assembly. The assembly has 2 ports at the bottom, three ports on the top and 1 port at the back. It normally opens, but needs 2cm H2O of pilot pressure to close the valve. The assembly parts to be clean and free from debris. The retainer disk and O-rings are to be fitted properly.
